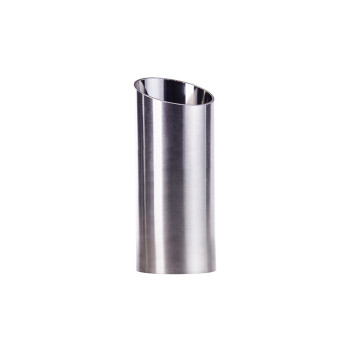

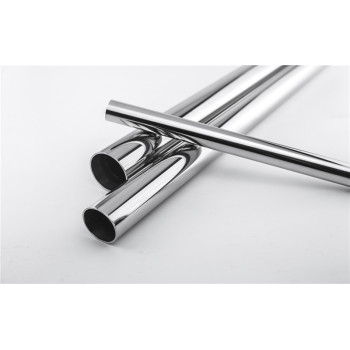

304 316L FOOD GRADE STAINLESS STEEL TUBE

Name	Food Grade Stainless Steel 304 316L Tube
Standard	ASTM A270/ DIN11850
Material (Grade)	304 , 304L,316L
Outside Diameter	24mm-159mm
Thickness	0.6mm-3mm
Surface	180/240/320Grit(Rɑ 0.5-0.8µm)
Length	6 meter or as for customer's request
Appplication	Apply in Biological engineering industry,food industry, pharmaceutical industry, purified water industry, electronic engineering industry, chemical fiber industry,chemical industry, paper making industry, beer industry, highly-purified gasses industry, cosmetics industry etc.

Stainless Steel Sanitary Tube
ASTM A270 \| DIN11850 \| JIS G3447 \| ISO2037 \| BS4825 \| QB/T 2467
Outside Diameter		Thickness (mm)
Outside Diameter		0.6	0.7	0.8	0.90	1.0	1.2	1.24	1.5	1.65	2.0	2.11	2.5	2.77	3.0/3.05
Inch	mm				20GA			18GA		16GA		14GA		12GA	11GA
	24.00
	25.00
1	25.40
	26.00
	27.30
	28.00
1 1/8	28.60
	29.00
1 1/4	31.80
	32.00
	33.00
	33.40
	34.00
	35.00
	36.00
1 1/2	38.10
	40.00
	41.00
	41.30
	42.00
	42.70
1 3/4	44.50
	45.00
	48.26
	48.60
2	50.80
	52.00
	53.00
	54.00
	57.00
2 3/8	60.33
2 1/2	63.50
	66.70
	70.00
3	76.20
	85.00
	86.00
3 1/2	88.90
4	101.60
	104.00
	108.00
4 1/2	114.30
	127.00
	129.00
	133.00
6	152.40
	154.00
	159.00
